R1 w/RD10 SP Adj.Tilt Pkg – NO LENS RING (F6121-1)

Level: Amateur – Pro.

Lenses: Fisheye 4.5-17mm.

Features: Smallest Pano Head, fits in pocket, repeatable results, fits to lens not camera

Uses: 360×180 Spherical Panoramas, Real Estate,

Cameras: Any – fit based on lens

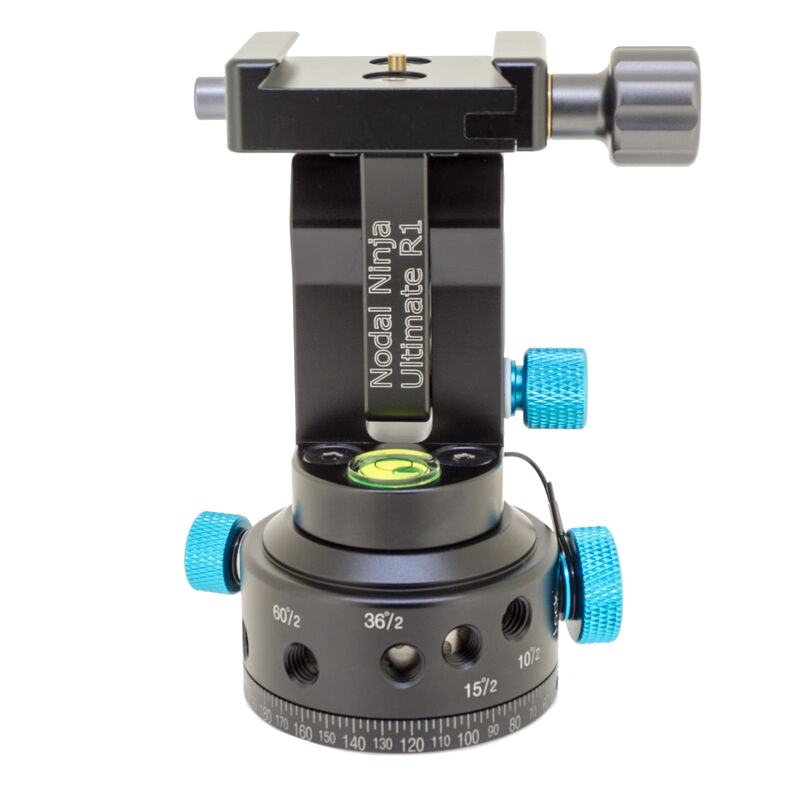

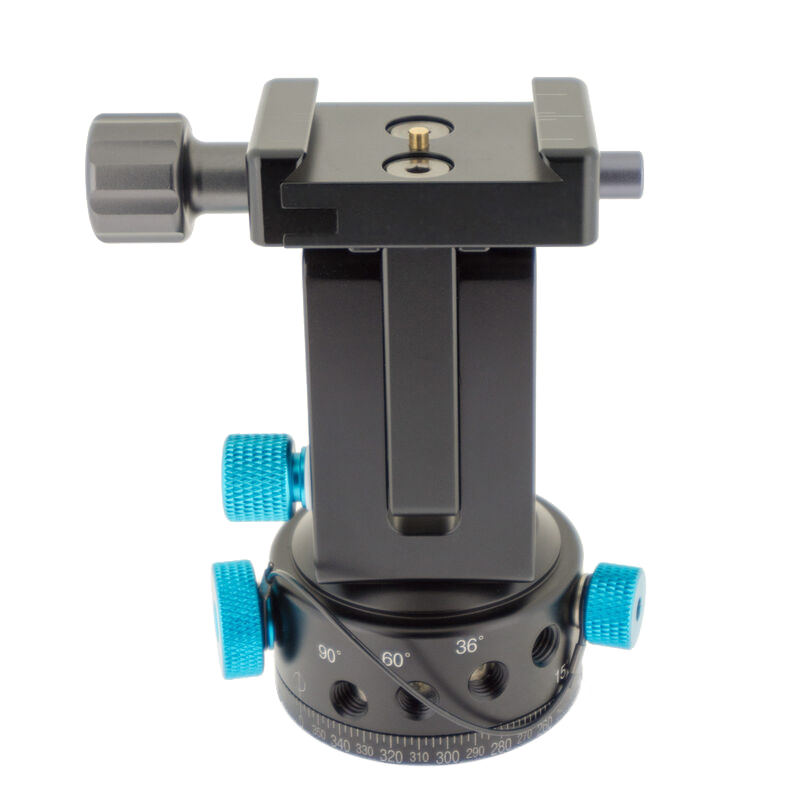

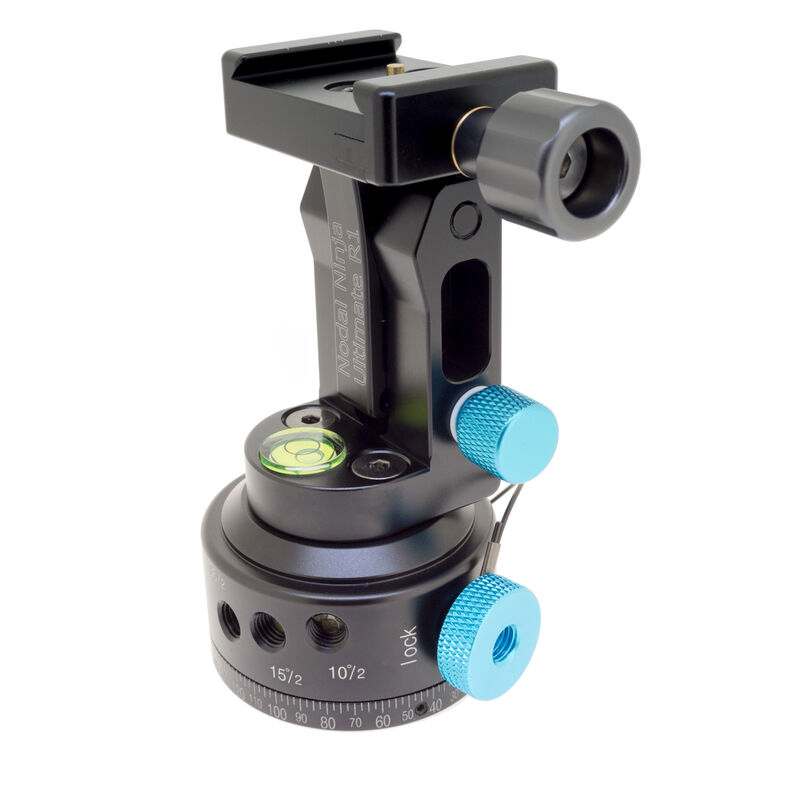

A single row pano head designed for use with circular and full frame fisheye lenses. The R1 pano head incorporates a unique cantilever tilting option suitable for different fisheye lenses on different sensor formats under different applications. Please keep in mind the canter-lever design is not intended for user to shoot the nadir (down shot) or zenith (up shot) by simply tilting down or up from original position. Doing so skews the NPP of a lens creating errors in stitching. While there are some using advanced workflows that may offer solution, these usually come at the cost of added work in post-production processing of images. Generally speaking, the zenith shot can be eliminated if shooting with slight tilt up. With use of optional R1/R10 Nadir Adapter, there is also technique to shoot the nadir (down shot).

LENS RING CLAMP SOLD SEPERATELY – Select Lens Ring Here

Features

• The ring clamp mounts directly onto the lens itself freeing up the camera.
• Different cameras can be used on the same lens without adjusting any settings.
• Ideal for pole photography and/or use with monopod Arca Swiss Compatible quick release design.
• 8 precise on-the-fly tilting options (-15, -10, -7.5, -2.5, 0, +5, +7.5, +12.5 deg).
• Options to capture (off-set from No-Parallax-Point) the zenith (up shot) and nadir (down shot) making nadir and zenith patching easier and making sharp long exposure captures possible.
• Ability to roll the camera/lens in any position including the popular 0, 60 and 90 degree positions.
• Lens clamp permanently mounted to lens making reproducible mounting possible and much quicker to setup.
• Different cameras can be used on the same lens without adjusting any settings.
• Compact and lightweight; great for use on monopods and high poles.
• Advanced rotator RD10 with 10, 15, 36, 60, 90 degree detent options and pan lock.
• Small nadir footprint.
• Built-in spirit level.
• Optional rail stop that is integrated into the Lens Ring Plate.
• Weight: 480 grams (1lb 1oz)
• RD10 SP upgradable to dual plunger option to support up to 200mm equivalent focal length, offering a lower cost pathway to multi-row pano head such as Nodal Ninja 3 MK3

Includes: R1 Tilt Head, RD10SP Rotator, Lens Ring Clamp, Case, 3/8-1/4 threaded adapter, hex key, Quick Reference Guide.

Be sure to check out some YouTube videos from us and some of our customers. See tab link above.

Note: price is reflective of standard lens ring at $109.95. Some lens rings are a bit more or less as noted in drop down selection.

User Guides and Manuals

QRG – Ultimate R1/R10: html .:. pdf
