Mecha Rotator E1 C1 Single Axis Controller ONLY (F9905)

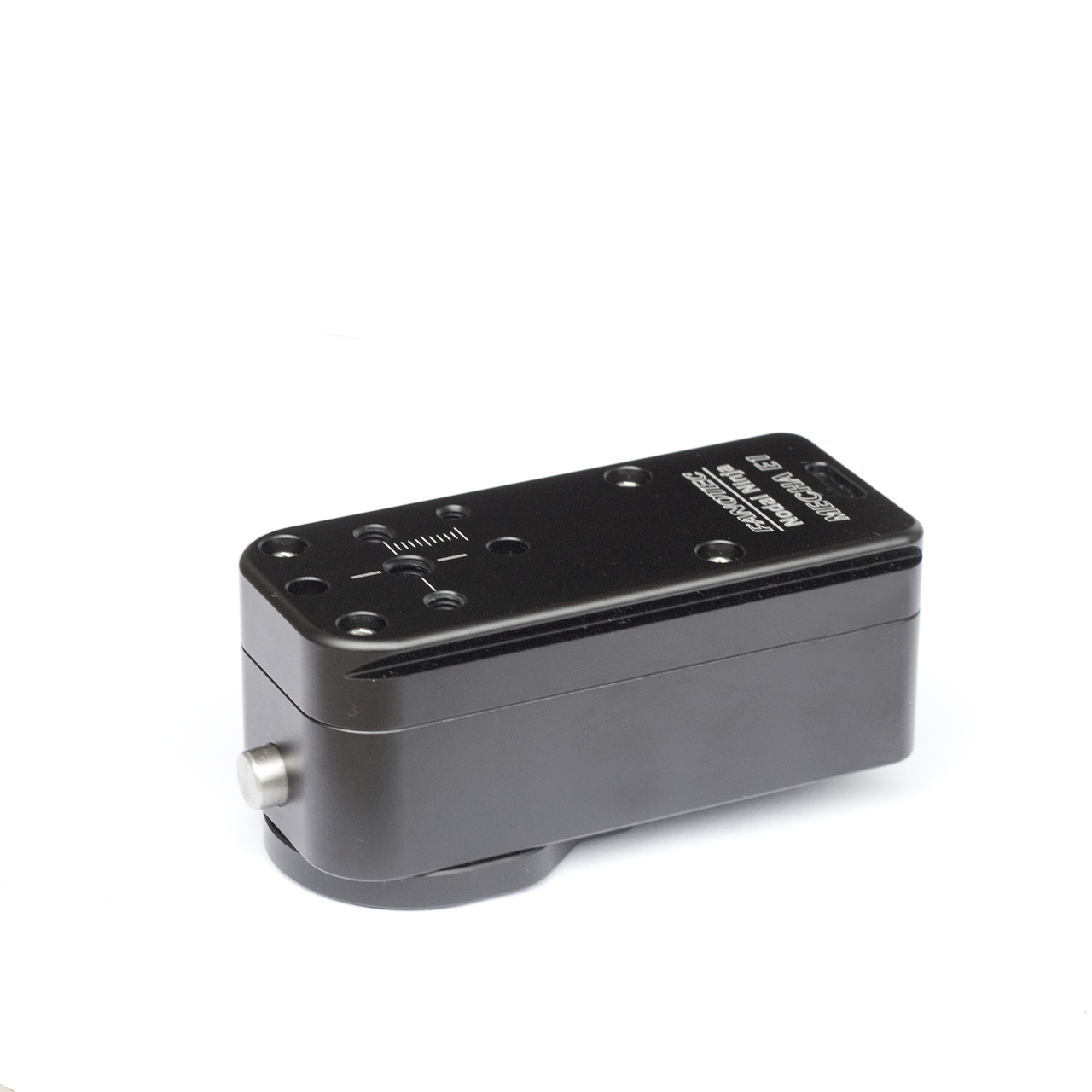

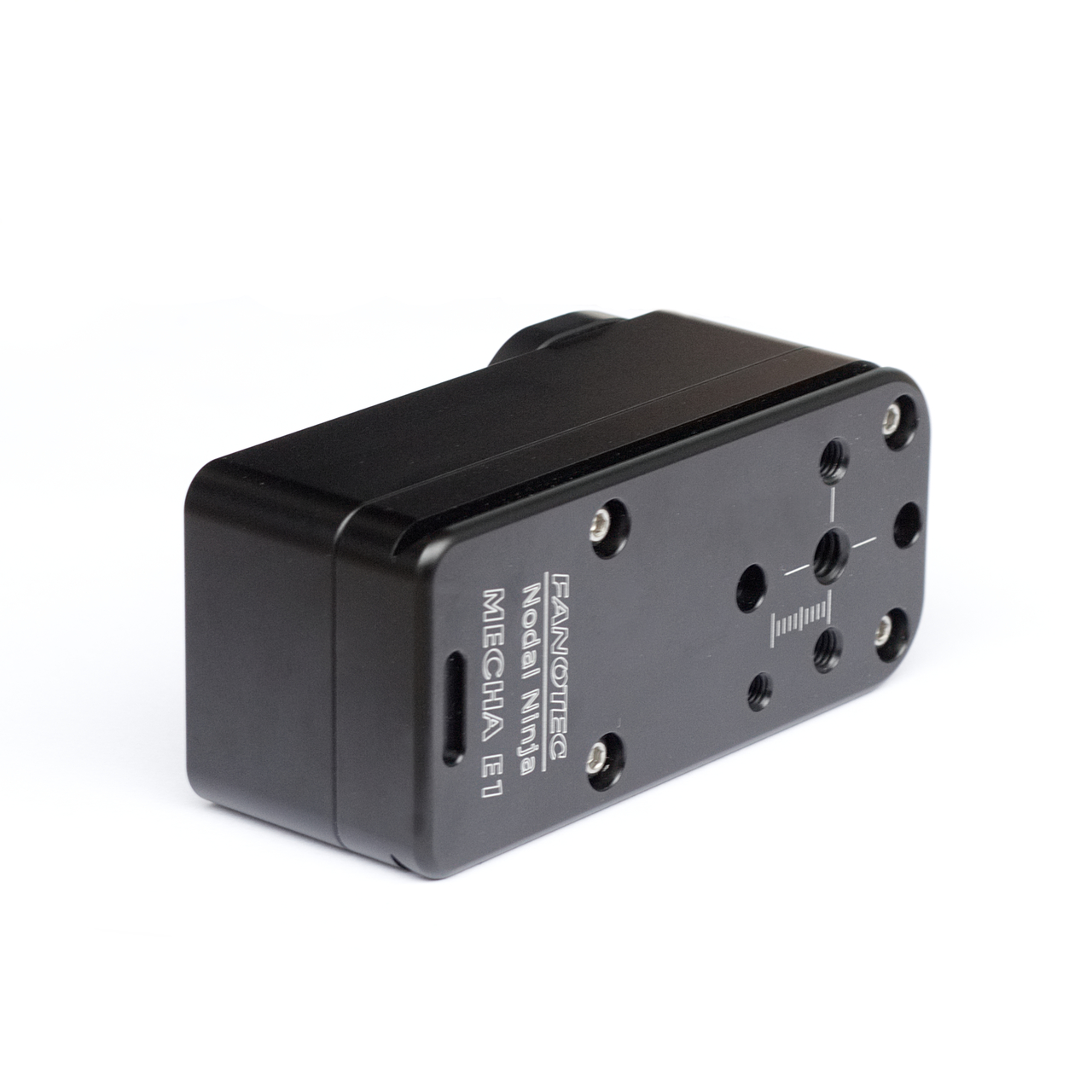

MECHA E1 Rotator Features:

• Compact and lightweight, 86x38x40 mm and 315 g (3.39×1.50×1.57 in and 11.11 oz).
• Robust construction to support large payload, 3 kg (6.6 lb) vertical loading (excluding pano head).
• High turning torque, 16 kg-cm (13.9 lb-in).
• High efficiency and low power consumption.
• High resolution, 0.05 degrees minimum rotation angle.
• Relatively low gear backlash which can be compensated by a friction ring.
• Suitable for shooting 360° panoramas and high-resolution gigapixel images.

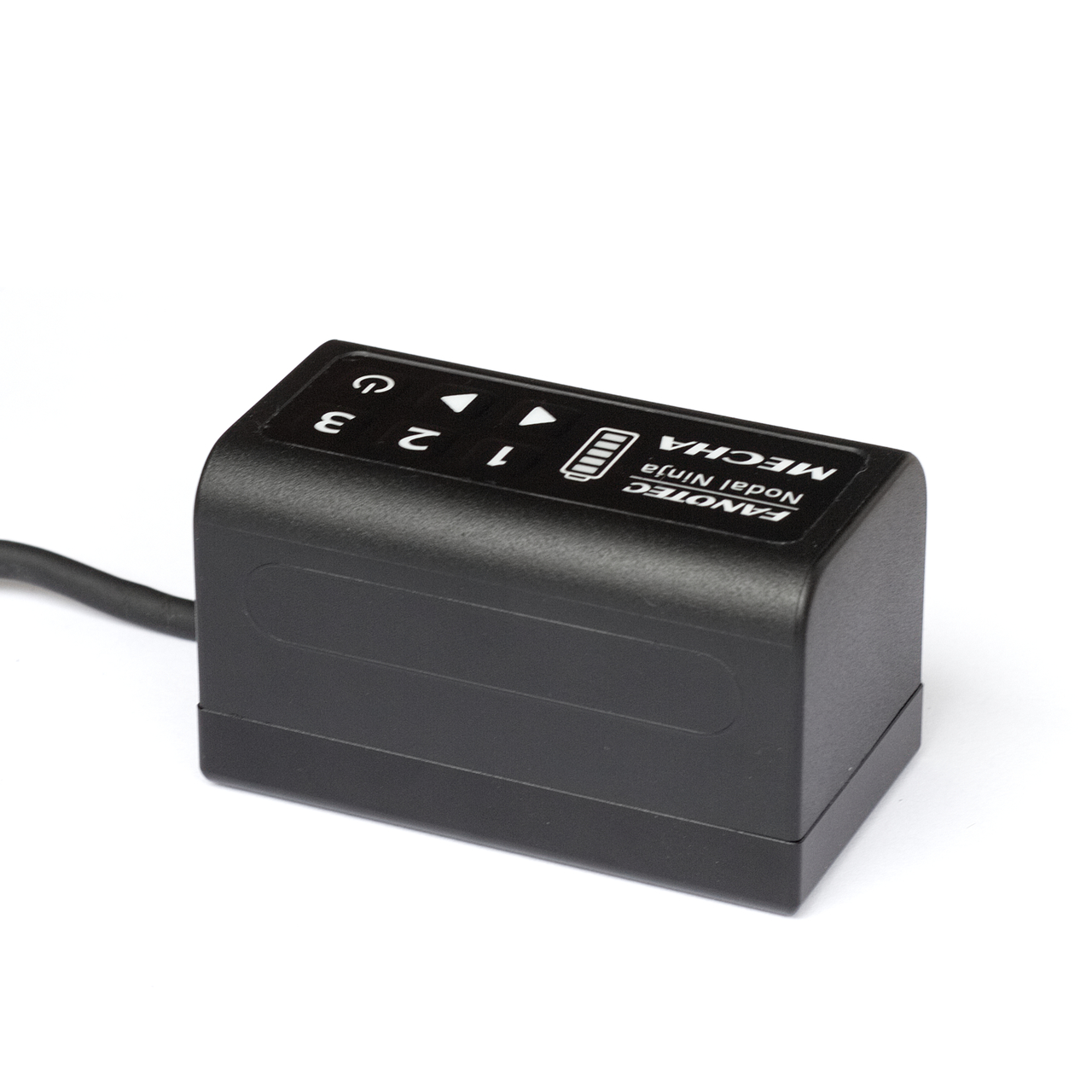

MECHA Single Axis Controller Features:

• Supports one MECHA rotator.
• Compact controller with built in battery and charger.
• NCR18650GA high capacity batteries, 7.2v, 3350mAh, 12Wh.
• WiFi remote control from smartphones, tablets, PCs by using simple web page interface.
• Supports linking and controlling multiple controllers via 2.4 GHz Wi-Fi , connection via a Wi-Fi access point, over the air firmware upgrade and remote control over the internet.
• 3 buttons to run presets stored in the memory, which can be configured via the web page interface.
• 5 LED’s to indicate the remaining battery capacity.
• CAM port with opto-isolated trigger for focus and shutter release.
• Multipurpose AUX port (to be implemented with future firmware upgrade) for shutter confirmation, Radio Frequency Start/Stop remote trigger, wired Start/Stop trigger or IR remote emitter etc.

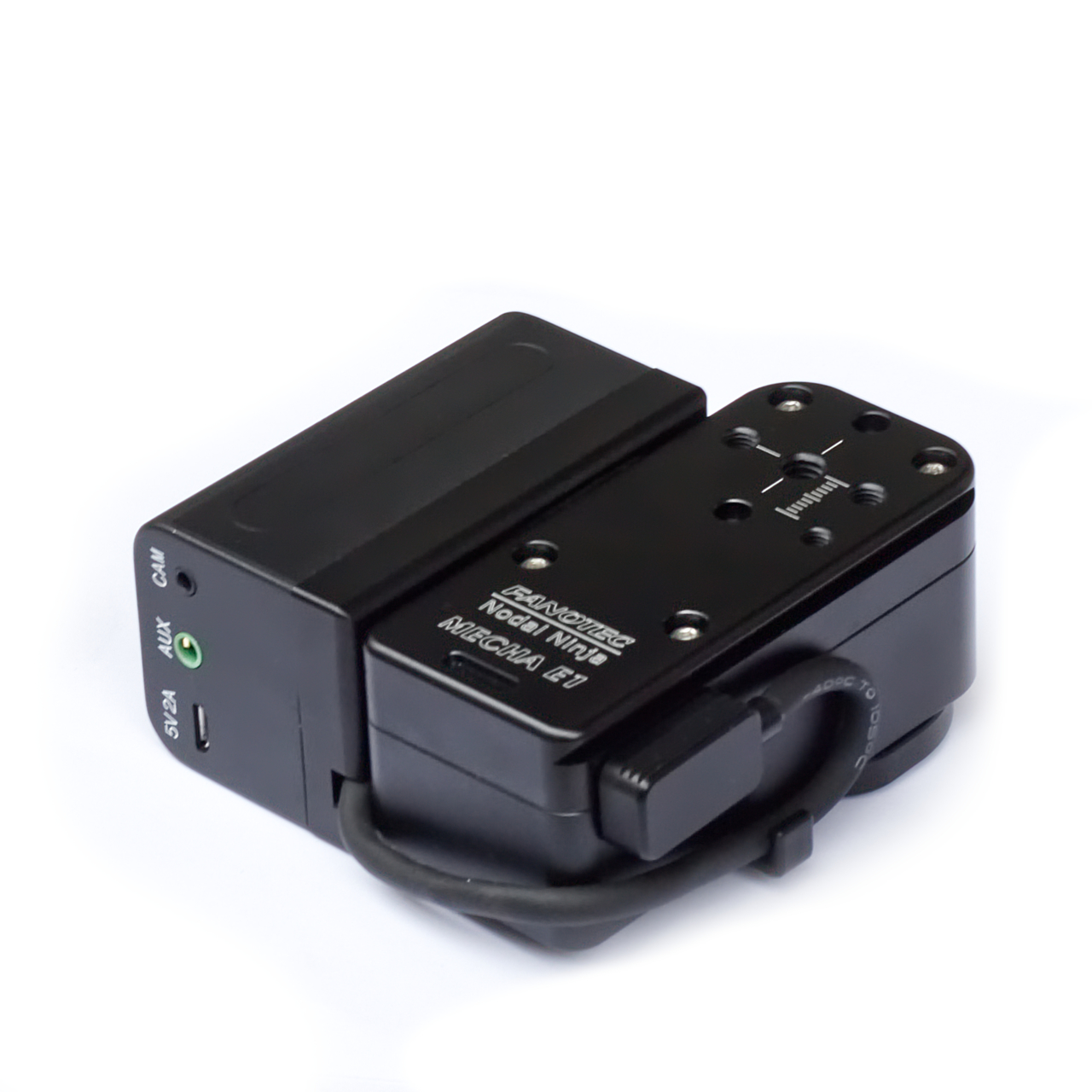

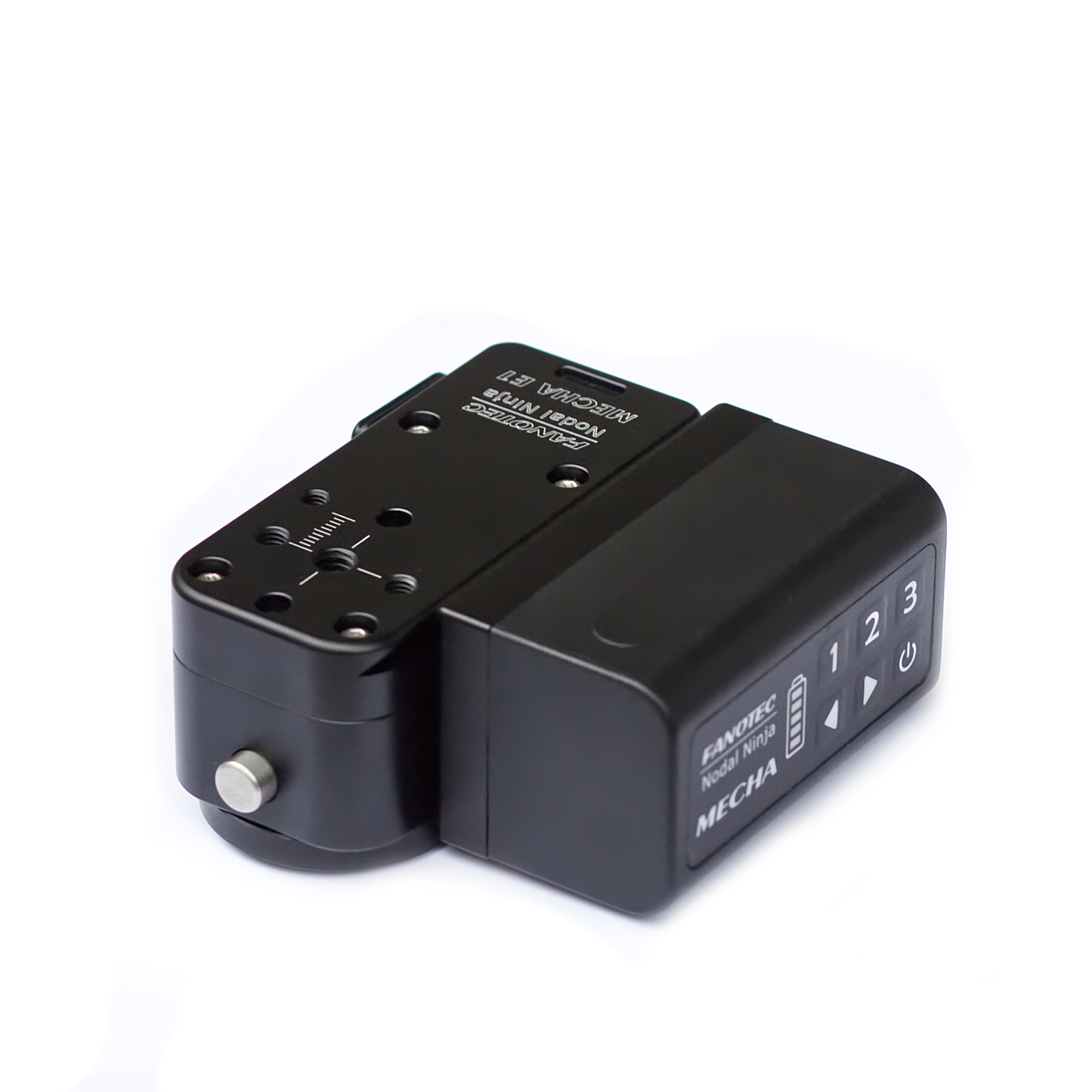

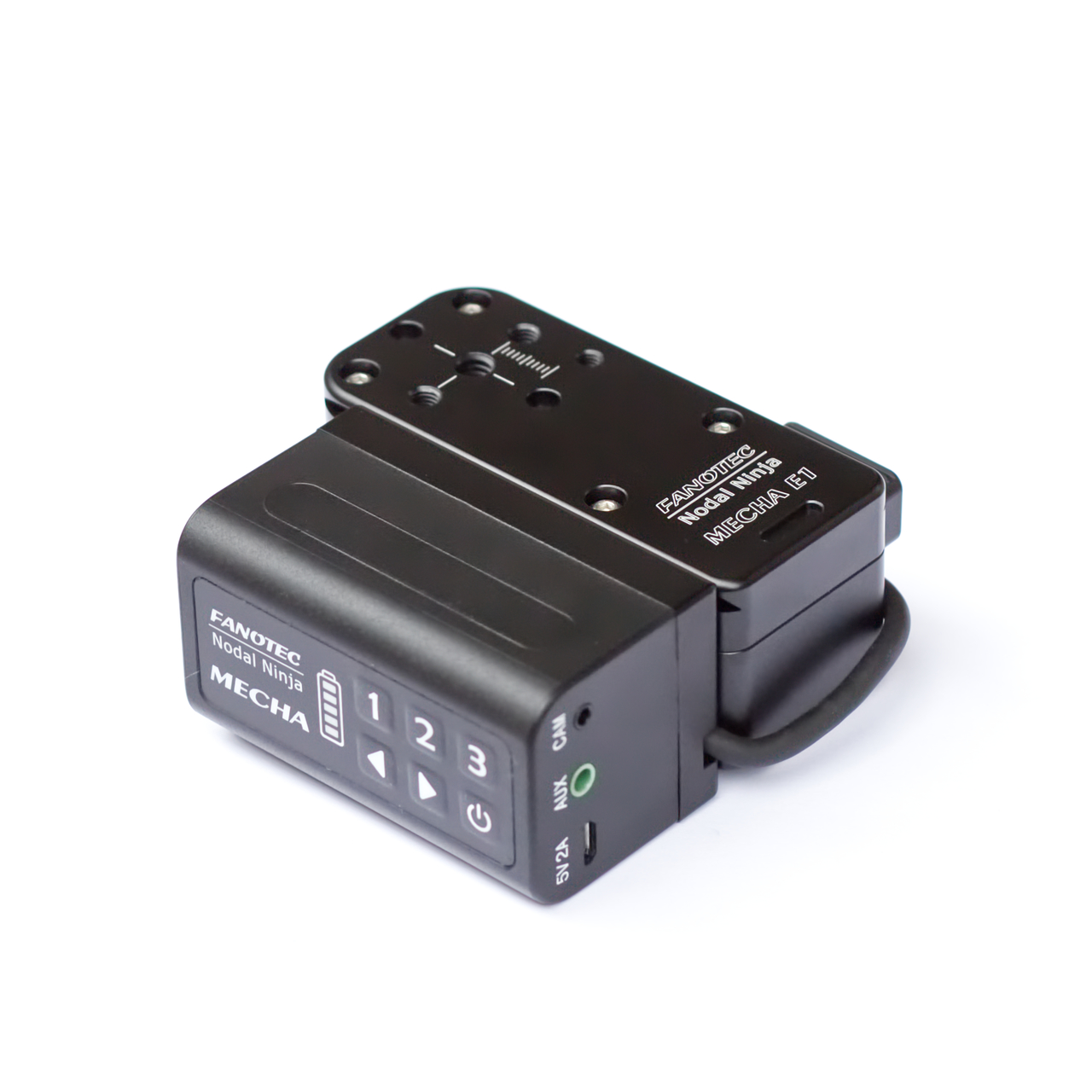

Total weight of MECHA Rotator E1 + Single Axis Controller C1 approx. 17.64 oz (500 g).

F9905 Package Includes:

• One MECHA E1 Rotator
• One MECHA C1 Controller
• One Micro USB Charging Cable
• Miscellaneous Spare and Extras for Customization and Creative Use

Essential Items NOT Included:

• One Shutter Release Cable

Recommended Accessories:

• PC Sync Cable for Shutter Release Confirmation
• Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)

Mecha documentation click here

• 14-day money-back guarantee.
• 1-year factory warranty.

For product suggestions/concerns and support please visit our forum.
