Single Axis Mecha C1 E1 With NN3 MK2 Nadir Adapter (F9905-5)
$512.95
Only 1 left in stock

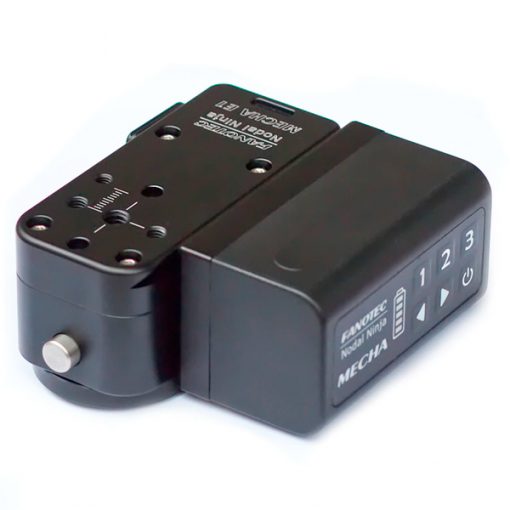

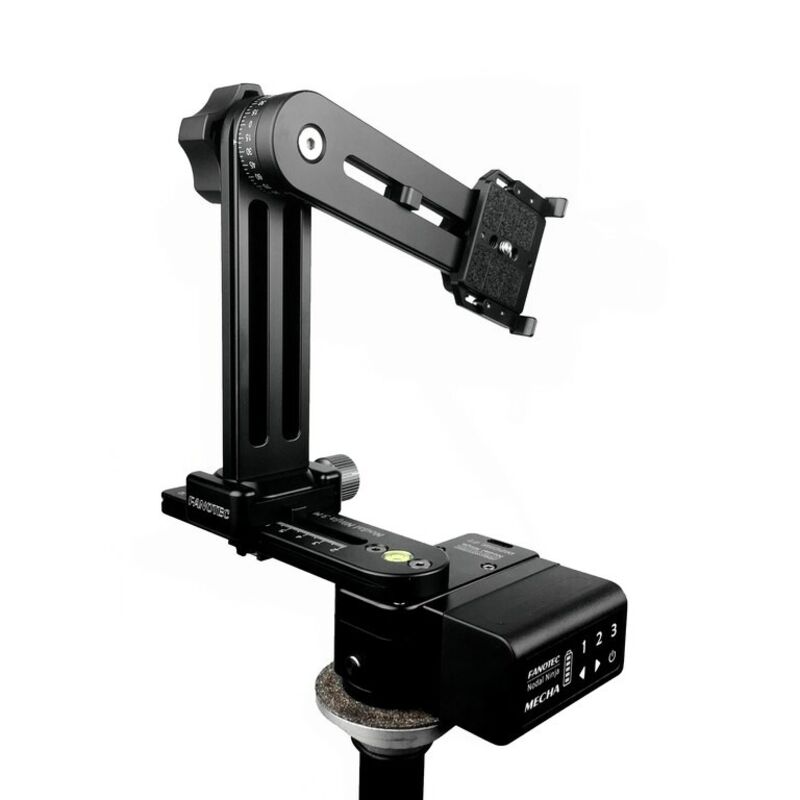

Single Axis Mecha Automated Solution for Nodal Ninja 3 MK2, MK3 or Nodal Ninja RS1
- The motorized MECHA E1 rotator will support up to 6.6bs (3kg), including the pano head above it.
- It is lightweight, quiet and power efficient. Together with a single axis Controller C1 (F9910), it automates the panning axis of supported Nodal Ninjas.
- Another set of E1 rotator and C1 controller can be added to motorize Nodal Ninja MK3 tilt axis for multi-row applications.
- MECHA E1 is NOT recommended for larger Nodal Ninjas (NN6 and M Series) unless only a small camera and lens are used.
Mecha Single Axis Controller Features:
- Supports one Mecha rotator.
- Compact controller with built in battery and charger.
- NCR18650GA high capacity batteries, 7.2v, 3350mAh, 12Wh.
- WiFi remote control from smartphones, tablets, PCs by using simple web page interface.
- Supports linking and controlling multiple controllers via WiFi , connection via a WiFi access point, over the air firmware upgrade and remote control over the internet.
- 3 buttons to run presets stored in the memory, which can be configured via the web page interface.
- 5 LED’s to indicate the remaining battery capacity.
- CAM port with opto-isolated trigger for focus and shutter release.
- Multipurpose AUX port (to be implemented with future firmware upgrade) for shutter confirmation, Radio Frequency Start/Stop remote trigger, wired Start/Stop trigger or IR remote emitter etc.
Total weight of Mecha E1 Rotator + Single Axis Controller approx. 17.35 oz (492g).
Essential Items NOT Included:
- One Long Shutter Release Cable for Dual-Axis MECHA
Recommended Accessories:
- PC Sync Cable for Shutter Release Confirmation
- Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)
The rotator has been tested thoroughly for the load specified and believe it will outlast 100,000 panos (test sequence for 28mm eq. focal length: 12 columns x 3 rows + zenith and nadir). Overloading will reduce the lifetime of bearing and gear. Worn bearing will introduce more play in rotator and cause instability. Worn gear will significantly increase backlash and reduce accuracy and precision of rotator. Bearing and gear are classified as consumables and not covered by warranty. Customers are liable for the cost of labor and parts for the replacement.
The camera hot shoe gives a signal during exposure. We make use of this signal, as shutter release confirmation, to adjust the exposure delay timing automatically. This allows shortest delay for bracketed shots without risking premature moves.
Camera in electronic mode however does not give this signal and only work with Mechanical shutter mode – as with any remote cable release.
Connect PC Sync cable to AUX port and hot-shoe for it to work.
Supports up to 3.3lbs (1.5 kg) vertical loading, including panohead, and 1.0Nm turning torque (center of gravity is 8cm from pivot). DSLR’s with battery grips may exceed recommended weight load.
- 14 day money back guarantee
- 1 year factory warranty
Mecha Quick Reference Guide safe links:
- Accessing the Web Control Interface of MECHA – http://bit.ly/mecha-access
- How to update the firmware – http://bit.ly/mecha-firmware
- The Mecha E1 – basic setup and how to use – http://bit.ly/mecha-setup
- Mecha Questions Forum – http://bit.ly/mecha-forum
For product suggestions/concerns and support please visit our forum click here.
| Cable | Fujifilm RR-90 (F9980-3), Minolta RC-1000S, Sony RM-S1AM (F9980-4), Olympus RM-CB1 (F9980-8), Olympus RM-UC1 (F9980-9), Panasonic DMW-RSL1 (F9980-10), Pentax CS-310 (F9980-12), Canon RS-60E3, Contax LA-50, Pentax CS205, Olympus RM-CB2, Sigma CR-21 (F9980-1), Canon RS-80N3 (F9980-2), Nikon MC-30A (F9980-5), Nikon MC-DC1 (F9980-6), Nikon MC-DC2 (F9980-7), Sony RM-VPR1 (F9980-11) |
|---|---|
| Hot Shoe | JSC-2 Hot Shoe (most popular), JSC-6 Hot Shoe, JSC-8 Hot Shoe |
