Dual Axis Mecha C2-E1 With NN3 MK2 (F9920)

Dual Axis MECHA C2 Controller

• Here comes the MECHA C2 controller, a dedicated dual axis controller with an OLED display and external battery. The display can guide you through all the major operations and settings, making C2 much more intuitive than the single axis C1 controller with LED indicators only.
• The use of external battery means you can carry spare batteries and quickly refuel MECHA before or during a shooting section.
• A power cable splitter (optional) is available for using 2 sets of batteries at the same time for extended operation and / or changing batteries without a pause.

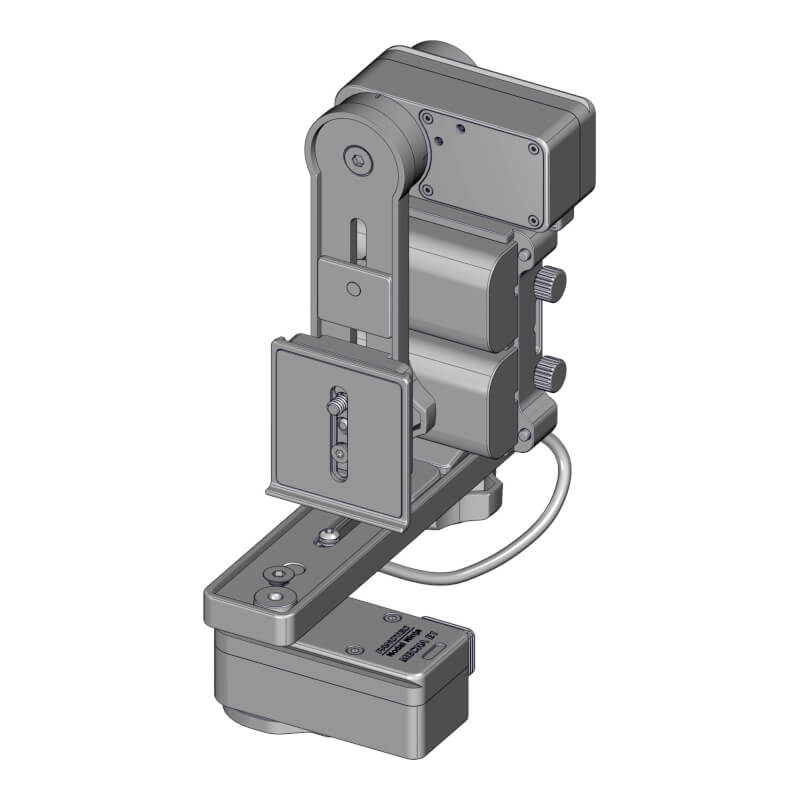

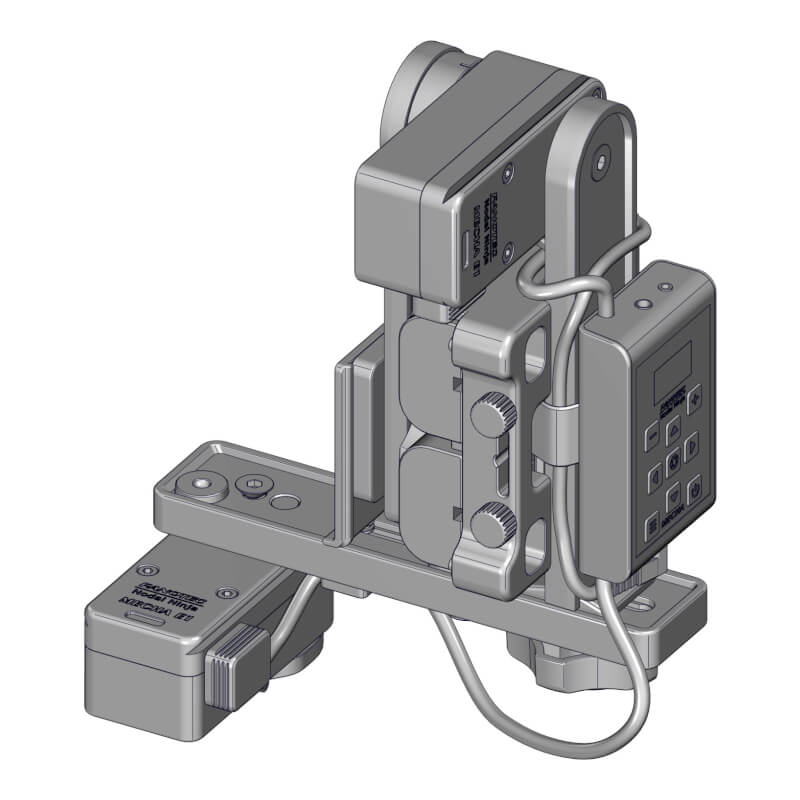

Dual Axis Mecha C2-E1 w/NN3 MK2

Finally a compact and very affordable dual axis pan tilt head solution. We use parts from NN3 MK2, RS2 lower rail, together with 2 MECHA E1 rotators, a C2 controller and a dual battery holder.

Use as a single axis horizontal rotator for single row shooting of turntable object VR. Or use as a dual axis rotator for both horizontal and vertical movements. The MECHA C2 and E1 being modular in design will be compatible with future Mecha rotators and controllers paving the way for future low-cost upgrades.

This setup supports a camera/lens up to 2 kg (4.4 lb) and a turning torque of 16 kg-cm (13.9 lb-in). NPP adjustment is up to 105mm from the pivot point. It is ideal for mirror-less, compact and lighter DSLR cameras. Shoot 360° panoramas or even high-resolution gigapixel images.

F9920 Package Includes:

• Two MECHA E1 Rotator
• One MECHA C2 Controller
• One Modified NN RS2 Lower Rail
• One NN3 MK2 Upper Rail with Camera Mounting Plate and Knob
• One NN3 MK2 Vertical Rail
• Dual Battery Holder (2-piece linked)
• One Carrying Case
• Miscellaneous Spare and Extras for Customization and Creative Use

Essential Items NOT Included:

• Two NP-F550 Type Batteries and a Charger
• One Long Shutter Release Cable for Dual-Axis MECHA

Recommended Accessories:

• PC Sync Cable for Shutter Release Confirmation
• Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)

MECHA is compatible with cameras having a wired remote port. Use the Select Shutter Release Cables filter to check compatibility and choose the right cable for your camera.

MECHA can only trigger the camera. It acts like a typical remote shutter release. Auto exposure bracketing is done by the camera.

14-day money-back guarantee.

1-year factory warranty.

For product suggestions/concerns and support please visit our forum.
