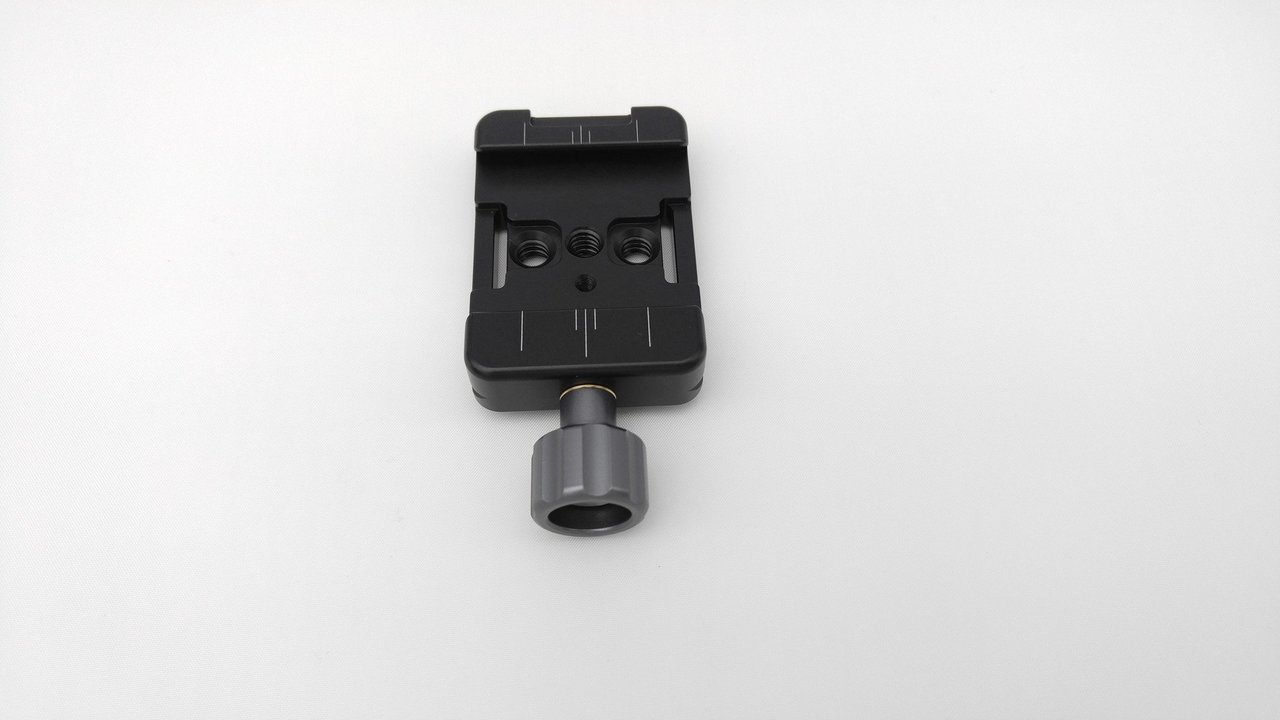

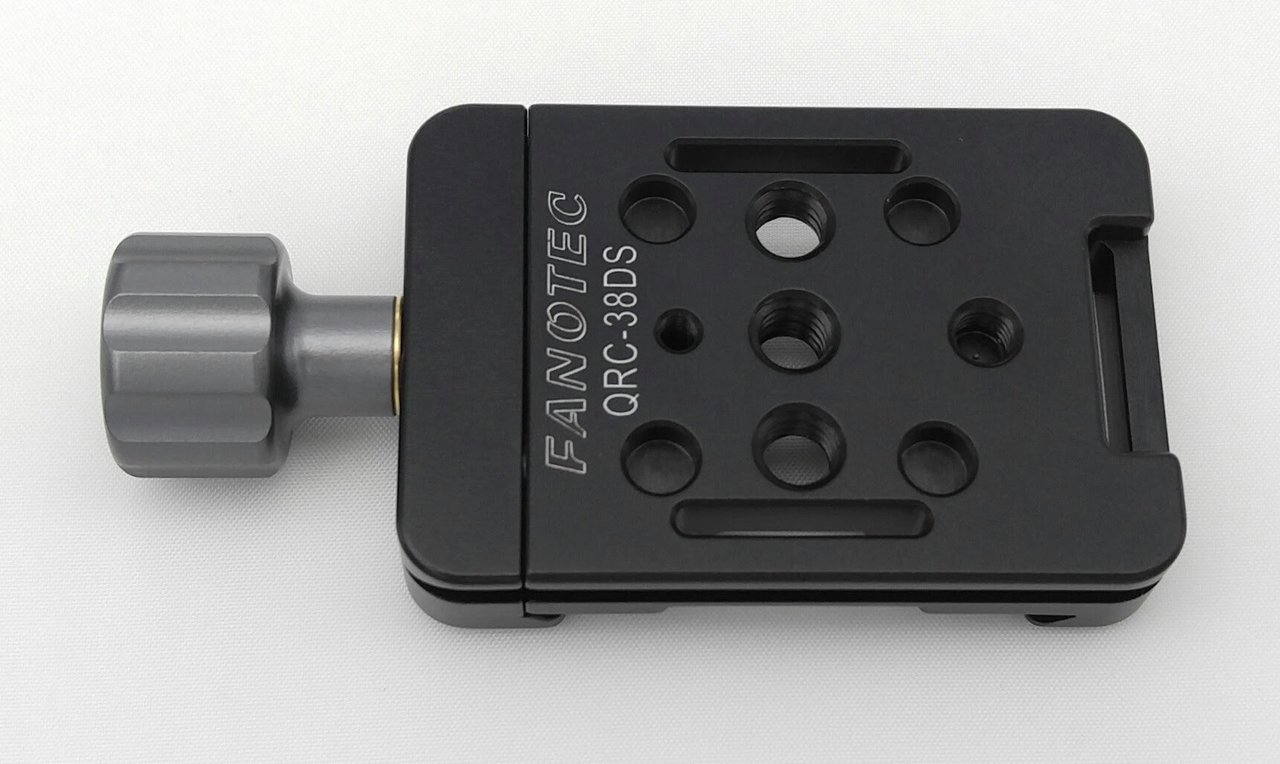

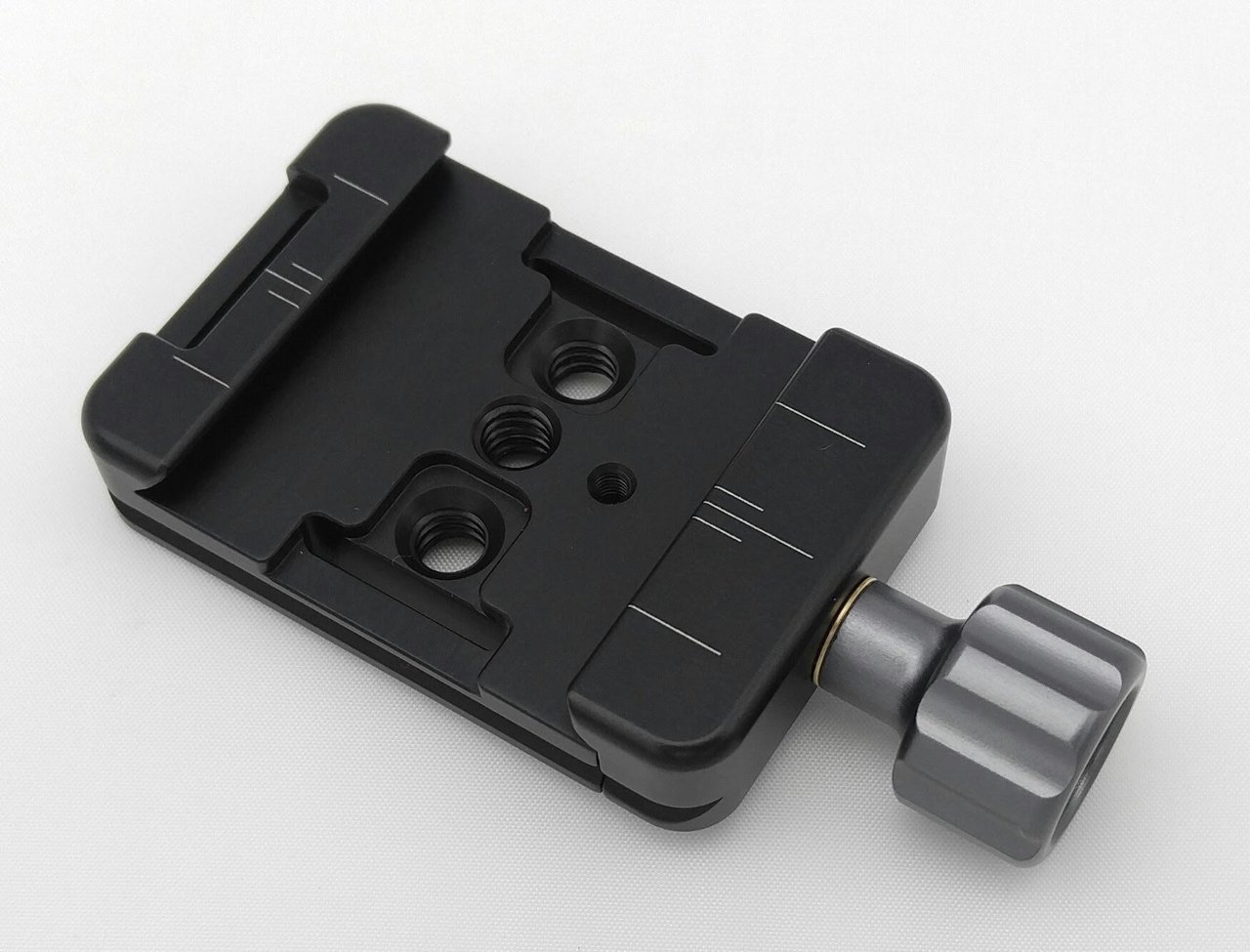

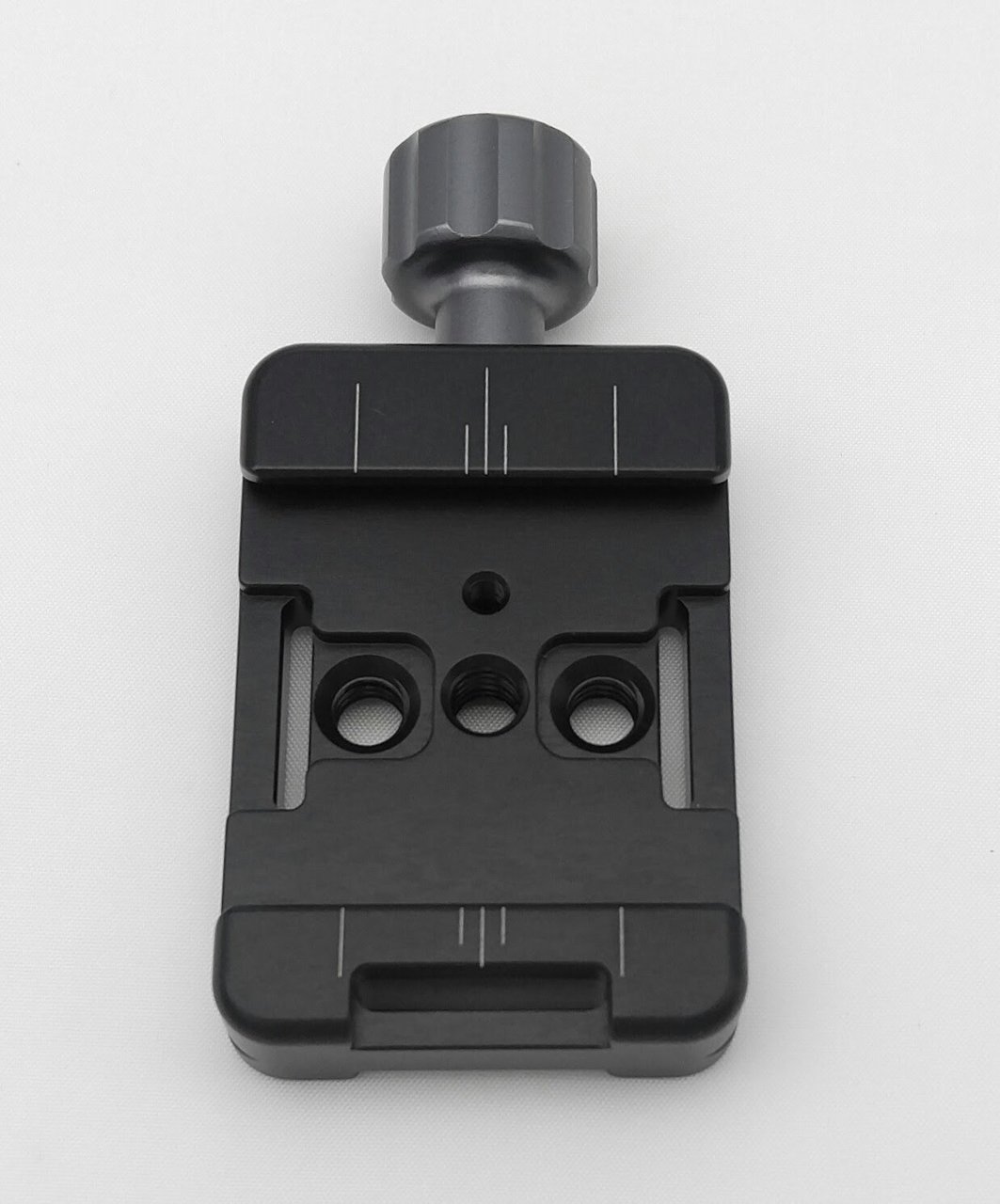

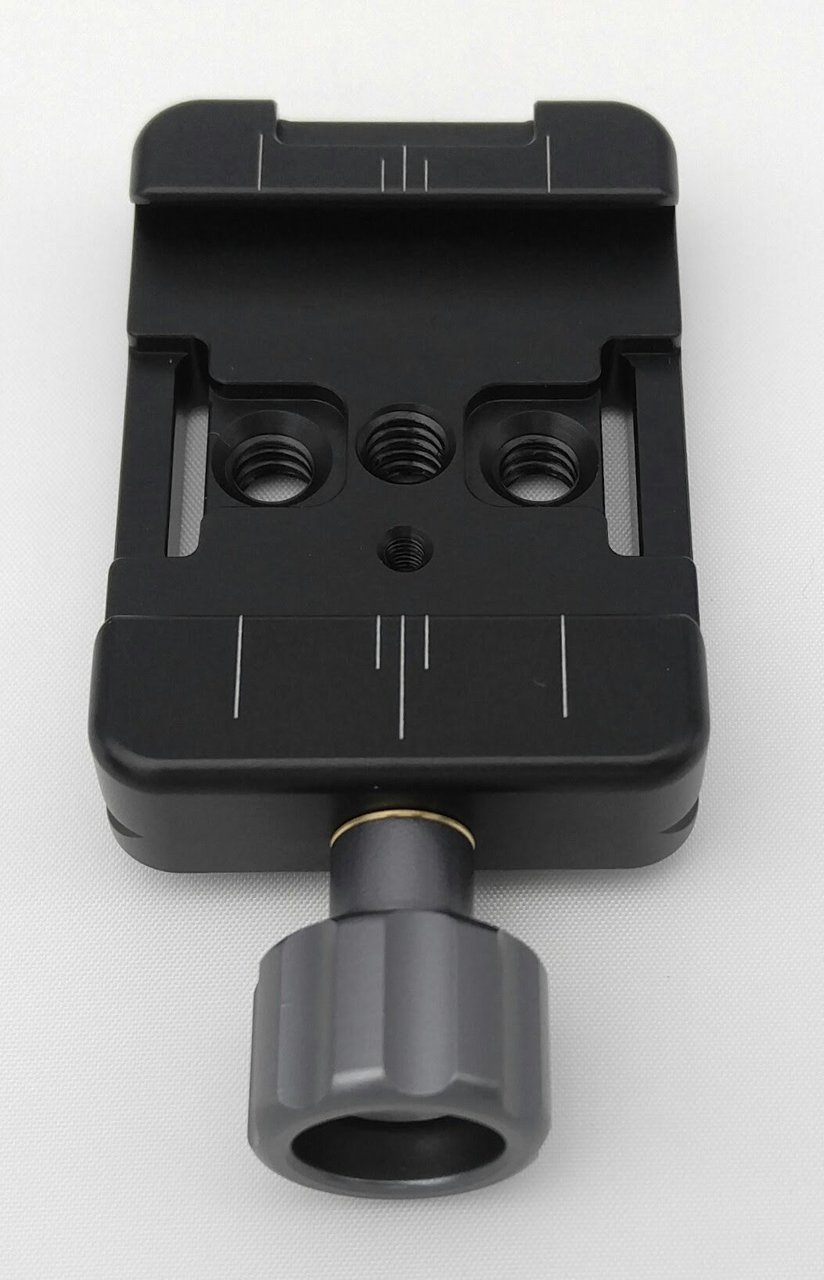

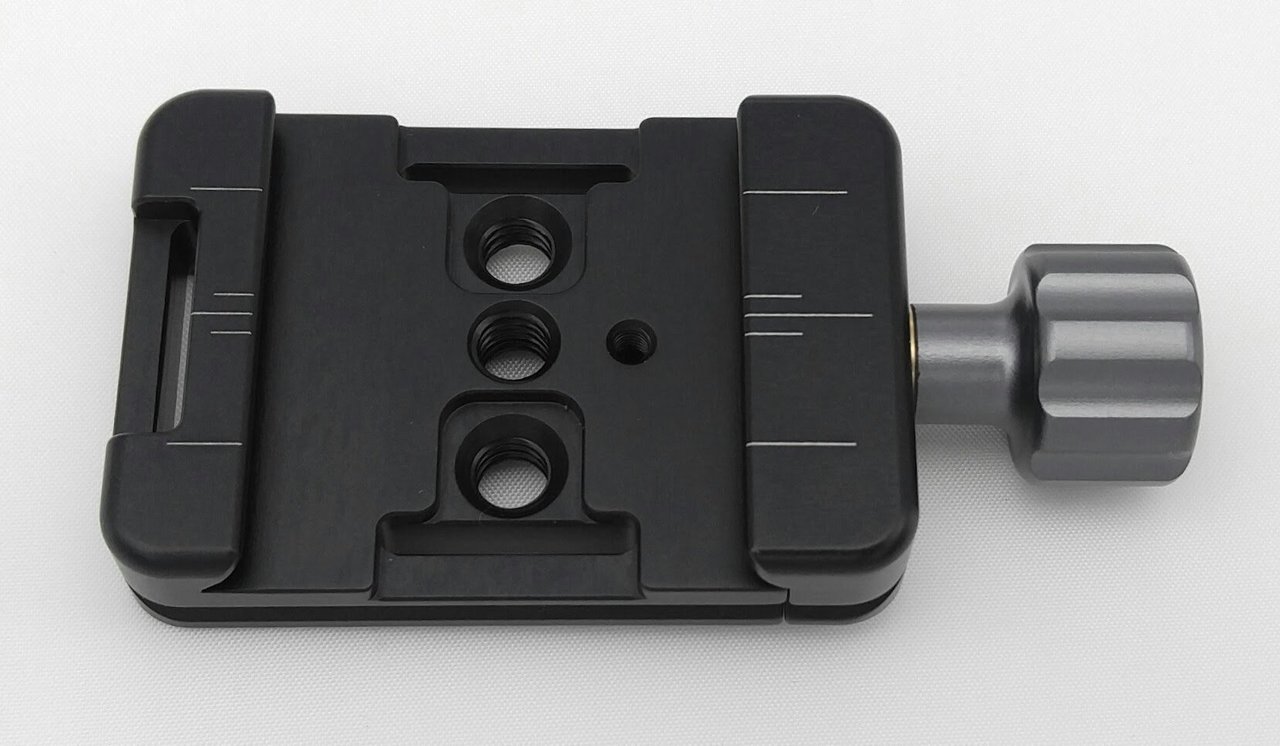

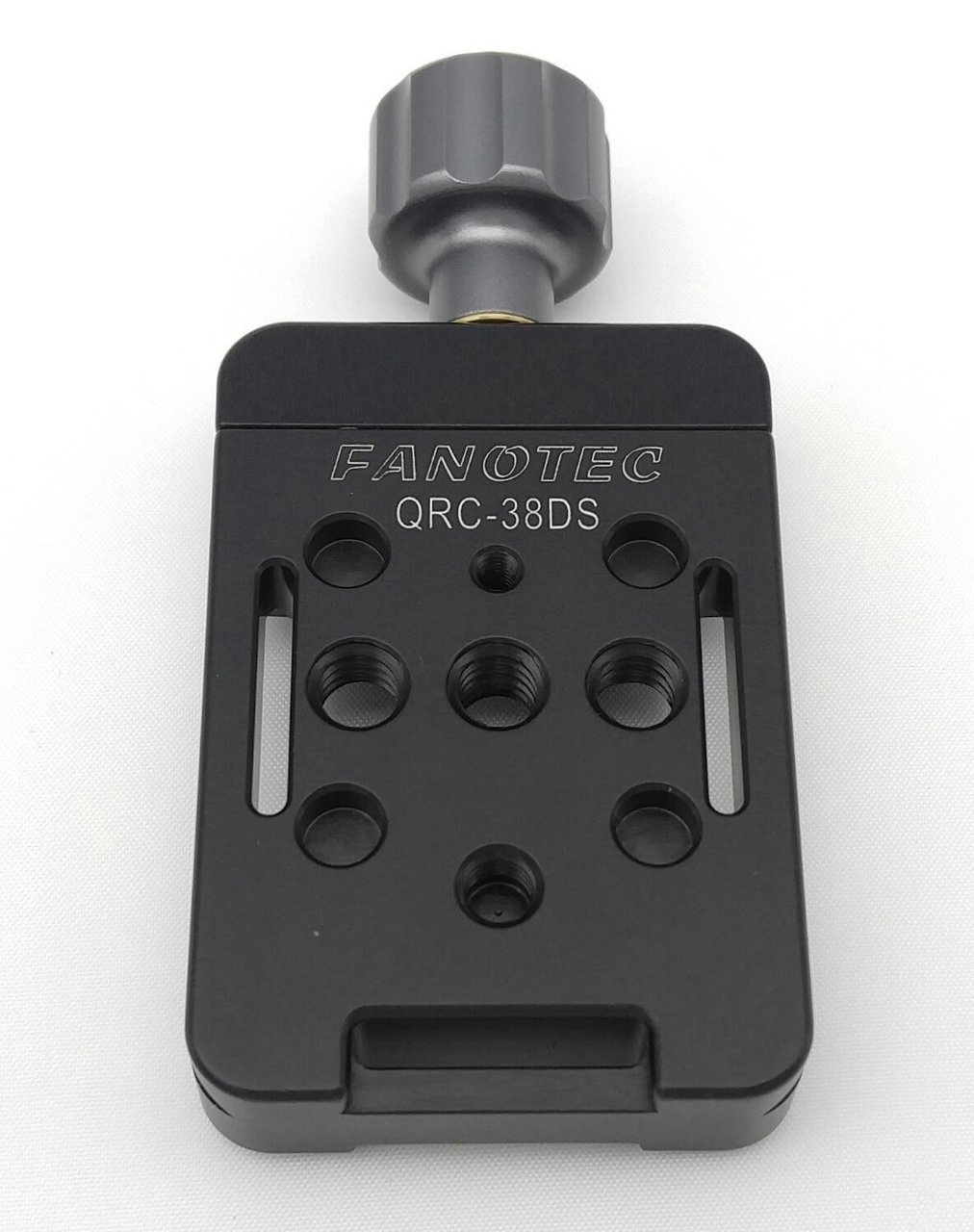

Arca-Swiss Style Clamp 38DS (F2013)

Features

• Screw-knob Mini Clamp
• 38mm jaws
• Low profile only 8mm thick (excluding jaws)
• Central 1/4″-20 threaded socket for mounting on a lens plate or MFR rail or a sling strap.
• Two 1/4″-20 countersunk threaded sockets separated by 18mm for mounting on a Rotator Mini or the Advanced Rotator D10 (two M5x14mm flat head screws) are needed, to be ordered separately).
• 3 strap bosses for attaching camera neck straps or sling
• Bottom dovetail perpendicular to the upper jaws for mounting in another Arca Style clamp to change dovetail orientation
• 2 clamps can be mounted on our 120mm Lens Plate (LP120) to form a compact dual lens ring mount stereo bracket to mimic an Inter-pupillary distance (IPD) of 55-83mm (2.16″-3.27″).
