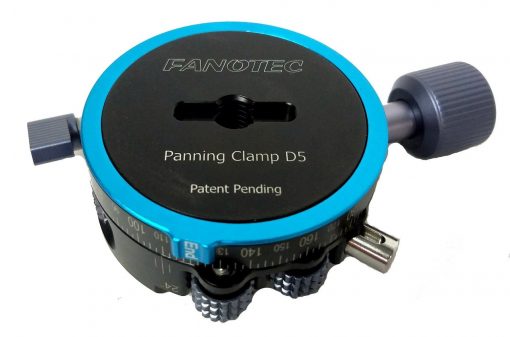

Advanced Rotator Panning Clamp PCD5 (F1195)

More compact and lighter than the RD16-II or RD8. This rotator allows for the most popular rotational click stops: 5°,10°,12°, 24°, 30°.

The rotator is Arca-swiss compatible and primarily designed for use with professional ball head.

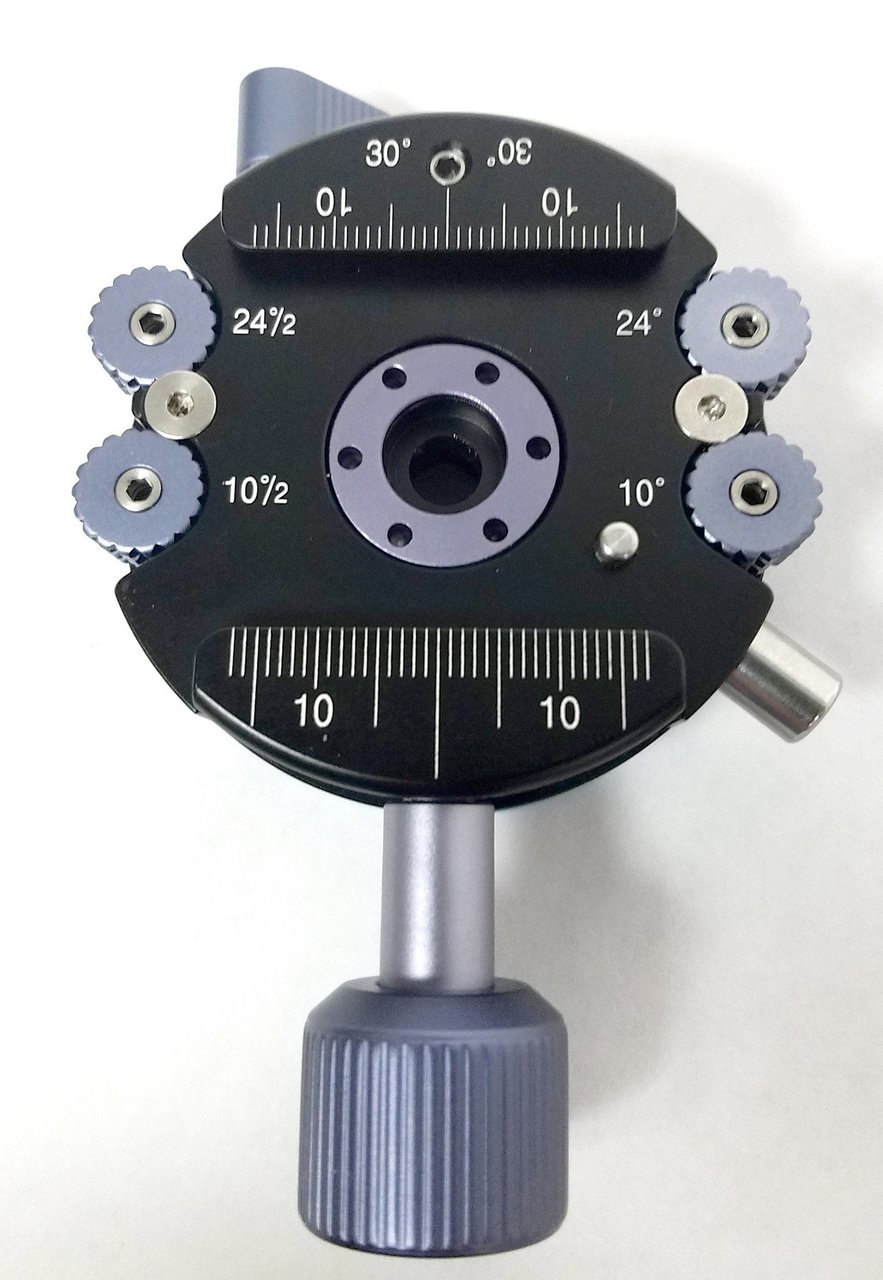

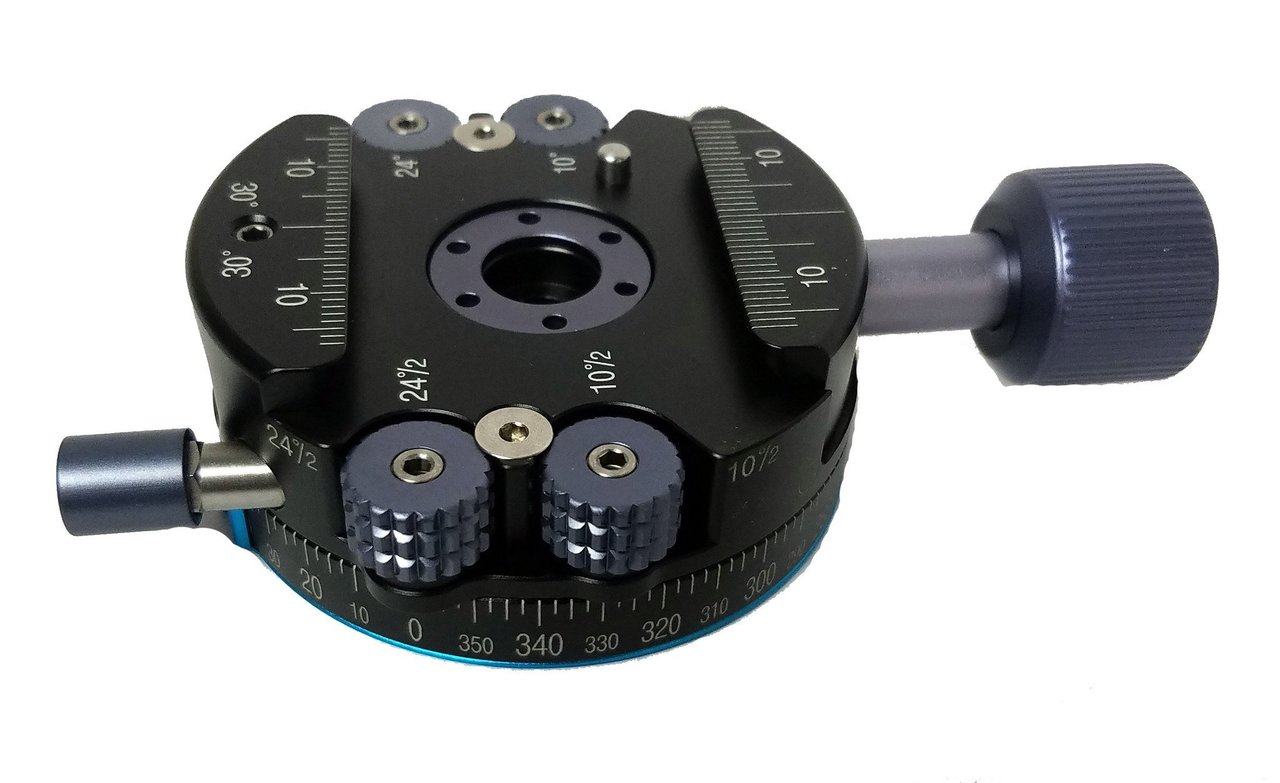

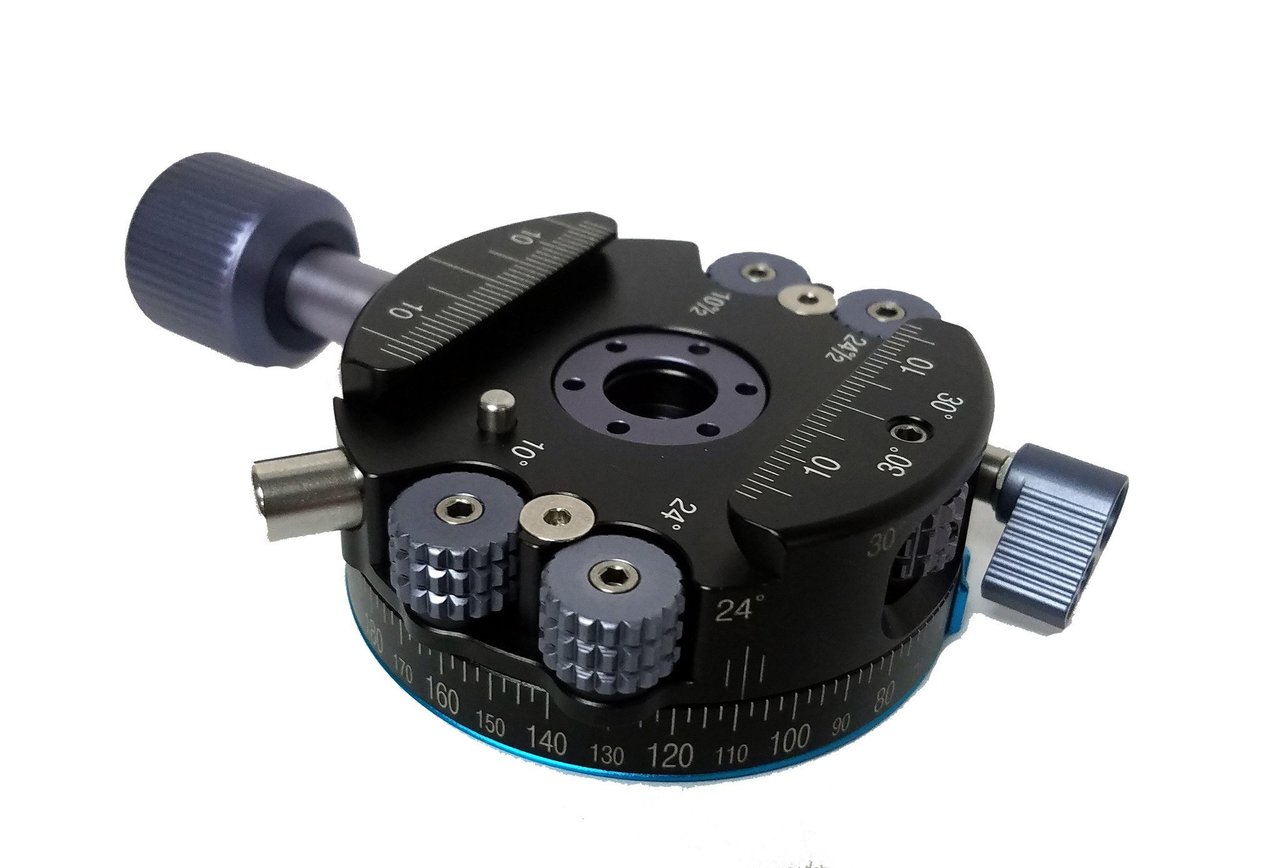

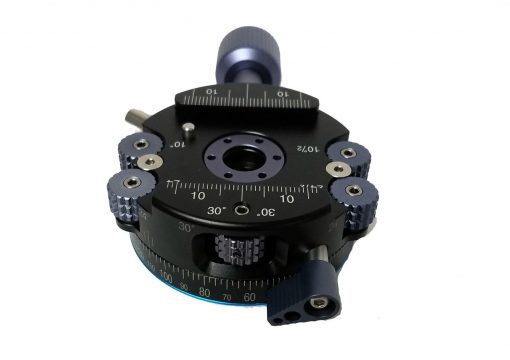

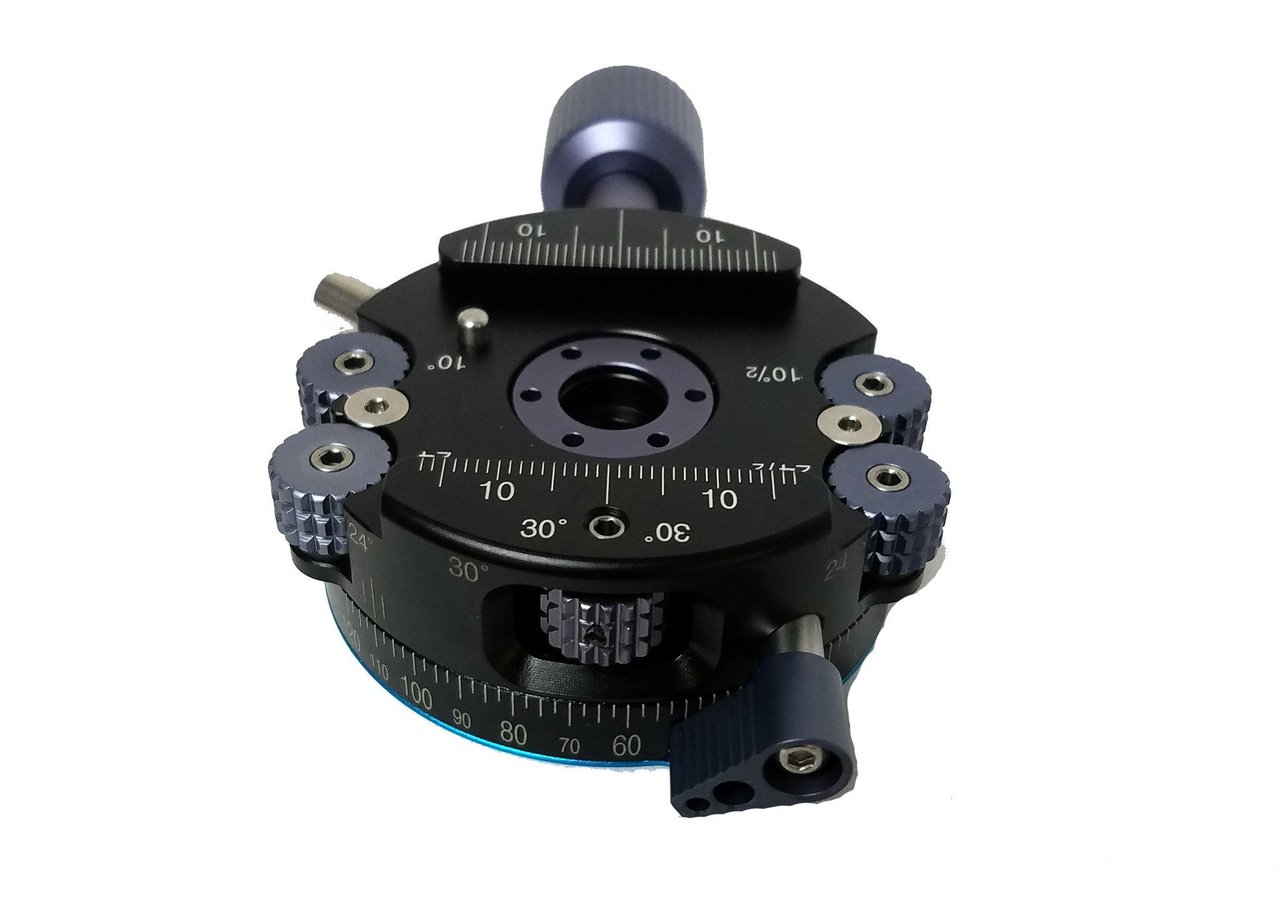

Very intuitive by design. Rotate all knurled detent knobs counter-clockwise for free rotation. When selecting click stops make sure proper knurled knobs are fully sitting by rotating clockwise.

• For 5° click stops rotate clockwise both 10° and 10°/2 knurled knobs.
• For 10° click stops rotate clockwise only the 10° knurled knob.
• For 12° click stops rotate clockwise both 24° and 24°/2 knurled knobs.
• For 24° click stops rotate clockwise only the 24° knurled knob.
• For 30° click stops rotate clockwise only the 30° knurled knob.

Features

• 5 selectable click stops 5°,10°,12°, 24°, 30°
• Acra-swiss clamp with locking pin
• Rotator locking lever End Tab (blue) allows for free movement across index scale to mark desired end positioning.
• 1/4″ and M6 male screws for mounting to tripod.
• Maximum recommended load: 5kg patent pending
